Test Laboratory

Complete facilities and staffs

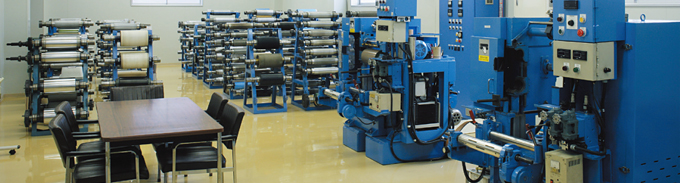

6 testing machines and well experienced specialists support your product development through specification study of manufacturing equipment. Test Laboratory Calender

Induction heating system High-temperature High-speed test calender (laminator)

Induction heating system High-temperature High-speed test calender (laminator)

Induction heating system High-temperature High-speed test calender (laminator)

Useful for various calendering ( adjusting thickness, lustering etc.) and thermal-laminating. Operating temperature is up to 400˚C, available to fluoroplastics and polyimide. And machine speed is up to 100 m/min, this enables sampling quickly. 5 un-winders and 3 re-winders are equipped. so 5 layer thermal-laminating is available.

Induction heating system High-temperature High-speed test calender (laminator) / spec
Machine type 3-roll type
Top heating rubber roll D 200mm,Middle and Bottom steel roll D 300mm
Machine width 500mm (Temperature accuracy length : 350 mm)
Machine speed 0.5 ~ 100m / min.
Pressure force 10 ~ 200kN ( linear pressure force : 20 ~ 400N/mm)
Roll temperature Top heating rubber roll :100~180˚C / Middle and Bottom steel roll:280 ~400˚C
Un-winder, Re-winder 5 un-winders / 3 re-winders

You can scrool horizontally

※ For questions, please feel free to contact us.

pagetop

Electric heating system test embossing machine

Electric heating system test embossing machine

Electric heating system test embossing machine

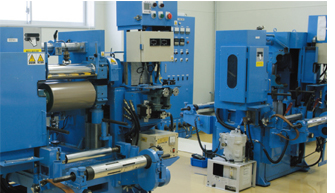

Useful for various embossing (pattern making,thermal-bonding,bulking,emboss laminating,hole making etc.). More than 170 rolls enable various combinations of rolls and embossing methods. Embossing machines are twin, this reduces roll changing and improves the efficiency of sampling.

Electric heating system test embossing machine
Machine type 2-roll type
Top embossing roll D 100mm,Bottom roll ( woolen paper,rubber, steel etc.) D 200mm
Machine width 300mm
Machine speed 4 ~ 40m / min.
Pressure force 10 ~ 50kN ( linear pressure force : 33 ~ 167N/mm)
Roll temperature Top embossing roll and bottom steel roll : Maximum 200˚C
Un-winder, Re-winder Single un-winder / Single re-winder

You can scroll horizontally

※ For questions, please feel free to contact us.

pagetop

Electric heating system High-pressure Precision test compression machine

Electric heating system High-pressure Precision test compression machine

Electric heating system High-pressure Precision test compression machine

Heavy compression by pressing force of 1000kN is available.Suitable for compression of electrodes for batteries and capacitors, or metal meshes.

Machine type 2-roll type
Top and Bottom steel roll D 400mm
(Possible to change to 3 or 4 type)
Machine width 550mm
Machine speed 1 ~ 100m / min.
Pressure force Maximum 1000kN ( linear pressure force : 1818N/mm)
Roll temperature Top and Bottom steel roll : Maximum 200˚C
Un-winder, Re-winder 1 un-winder / Single re-winder

You can scroll horizontally

※ For questions, please feel free to contact us.

pagetop

Thermal-Laminator

Thermal-Laminator

Thermal-Laminator

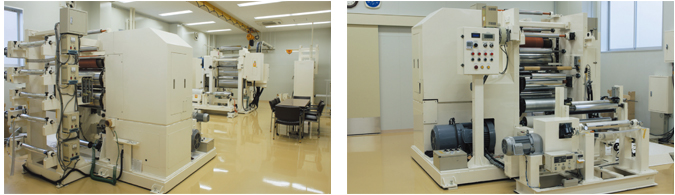

Useful for thermal-lamination. neccessaries of lamination ( chilled roll, separating roll etc. ) are equipped. 5 un-winders and 3 re-winders are equipped, so 5 layers thermal-laminating is available.
